Portable gas melting furnace, 4 kg, with 1 burner
Hurry up, only 9 items left in stock.
Couldn't load pickup availability
Your payment details are processed securely. We do not store card details and have no access to your card information.
Description
This melting furnace processes up to 4 kg of material at temperatures up to 1,450 °C. That lets you melt gold, silver, copper, aluminium, brass, bronze and tin. It's the entry-level model: 7 kg, one burner, and a chamber measuring 150 by 190 mm.
Burner and air supply
Made from 304 stainless steel, with a working pressure between 1 and 25 PSI. Set to a neutral flame at the factory, with a choke so you can adjust it yourself.
That choke controls the air mixture, which determines the temperature you can reach. After all, every working pressure calls for a different air-to-gas ratio.
Fuel
Butane, propane, a combination of the two and LPG all work. Natural gas is not an option.
Lining

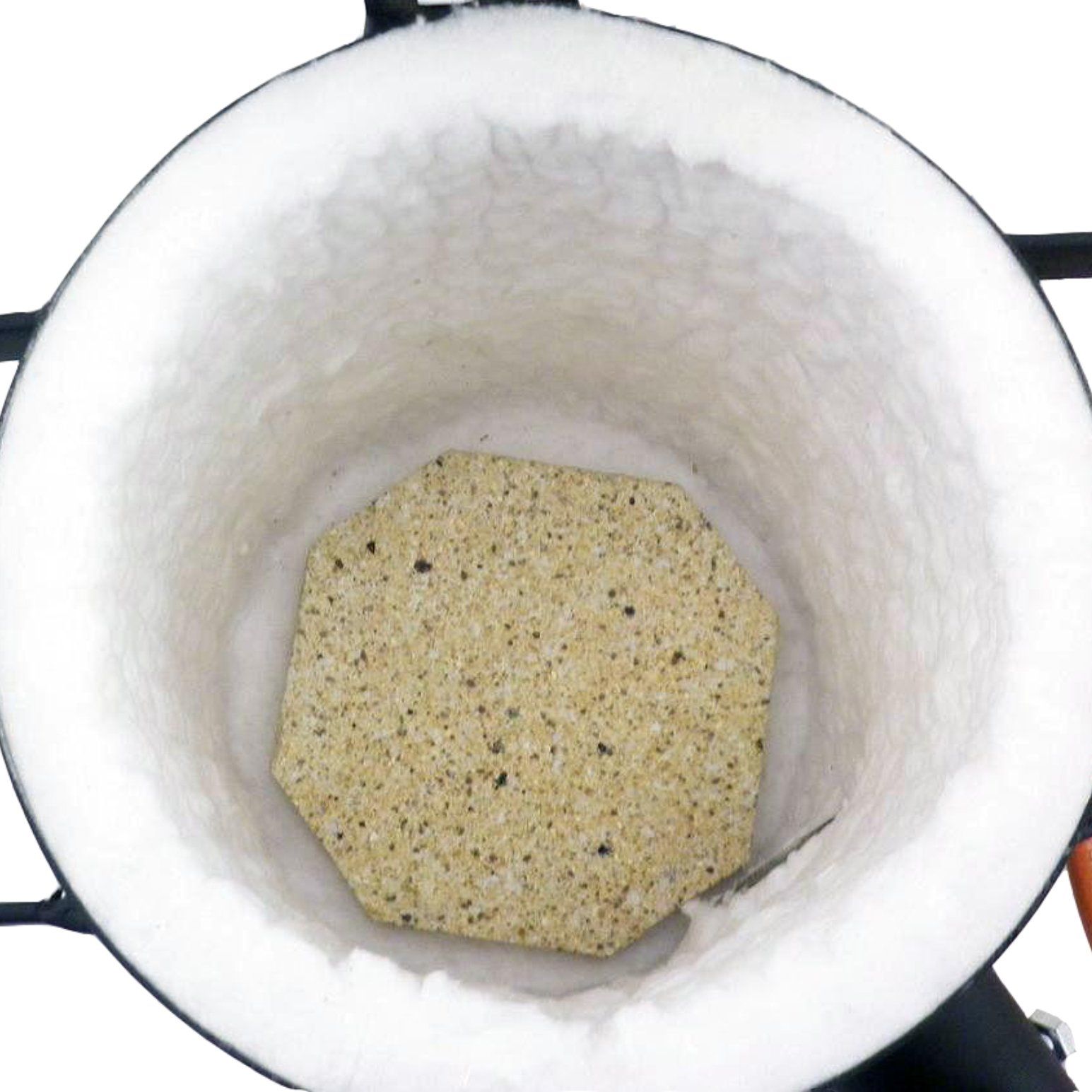

The walls get 1 inch of ceramic wool, the door and the base 2 inches. Ceramic brick sits at the bottom.
Included

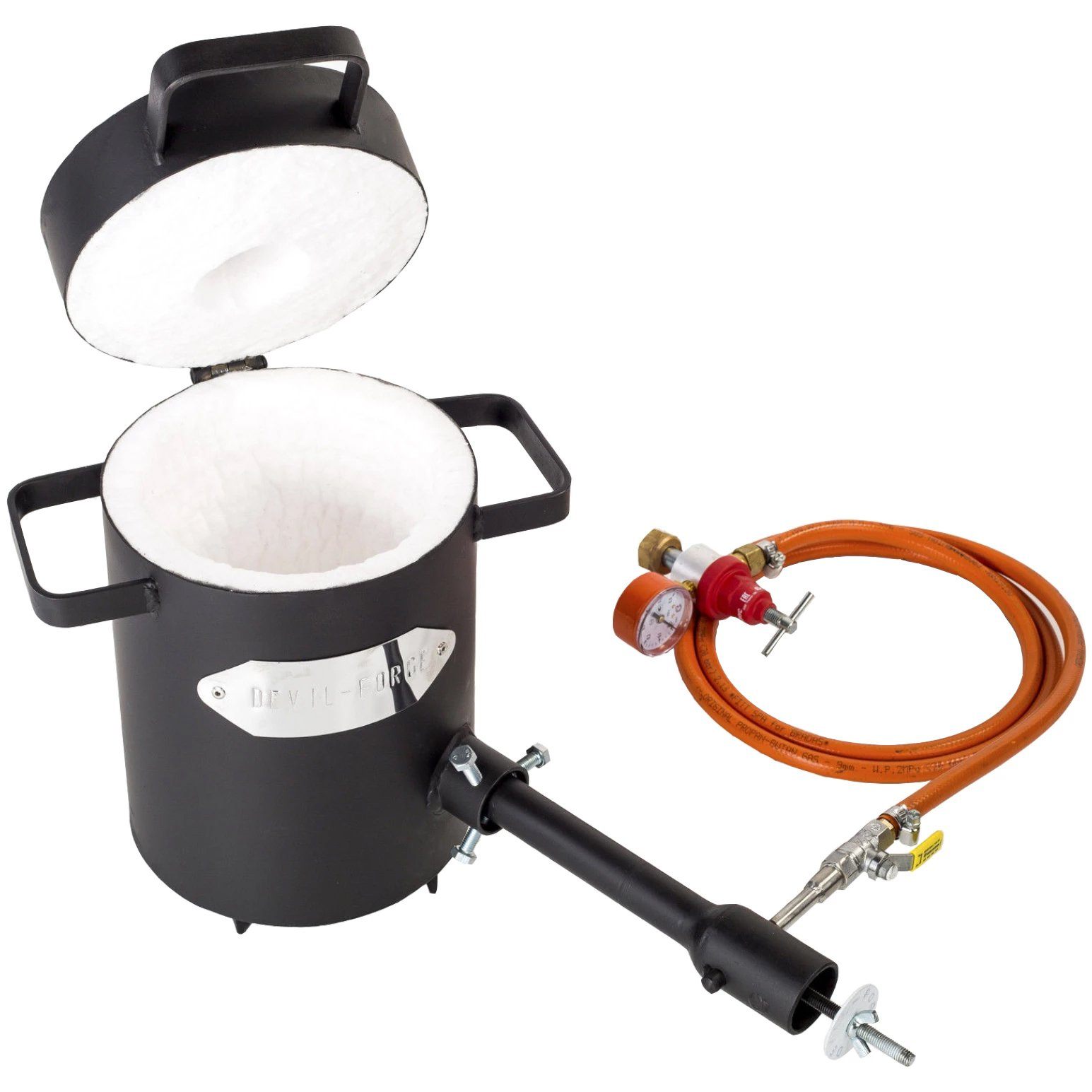

- 1 melting furnace
- 1 gas burner with ball valve and adjustable air supply

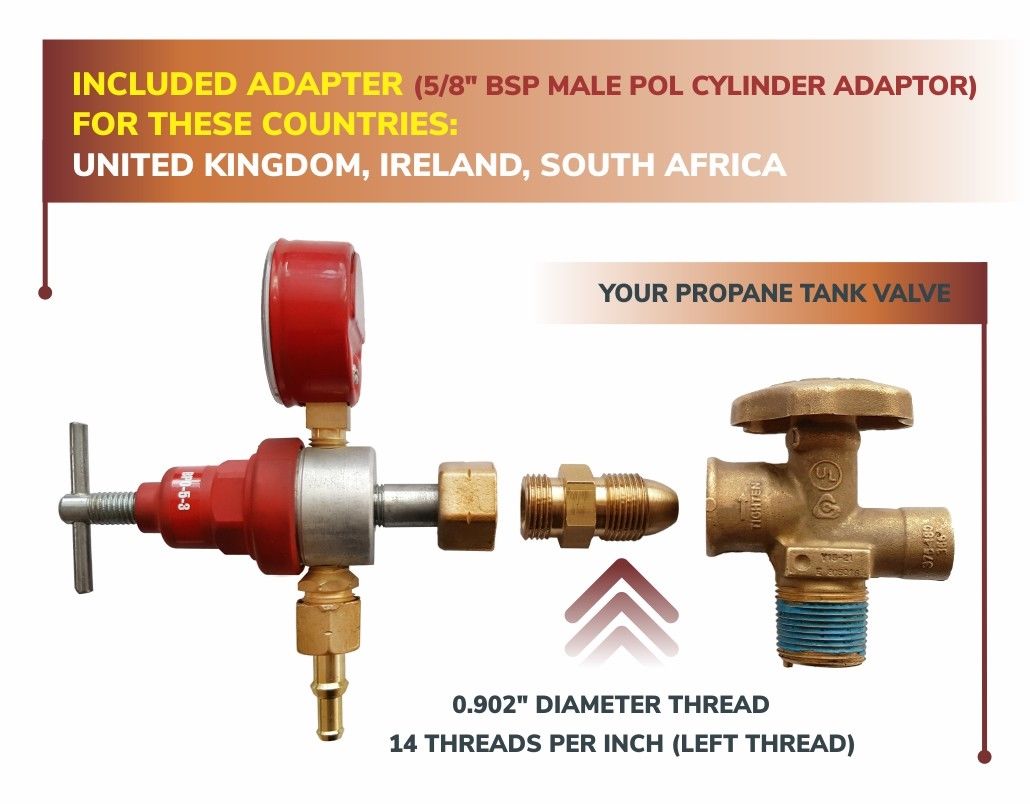

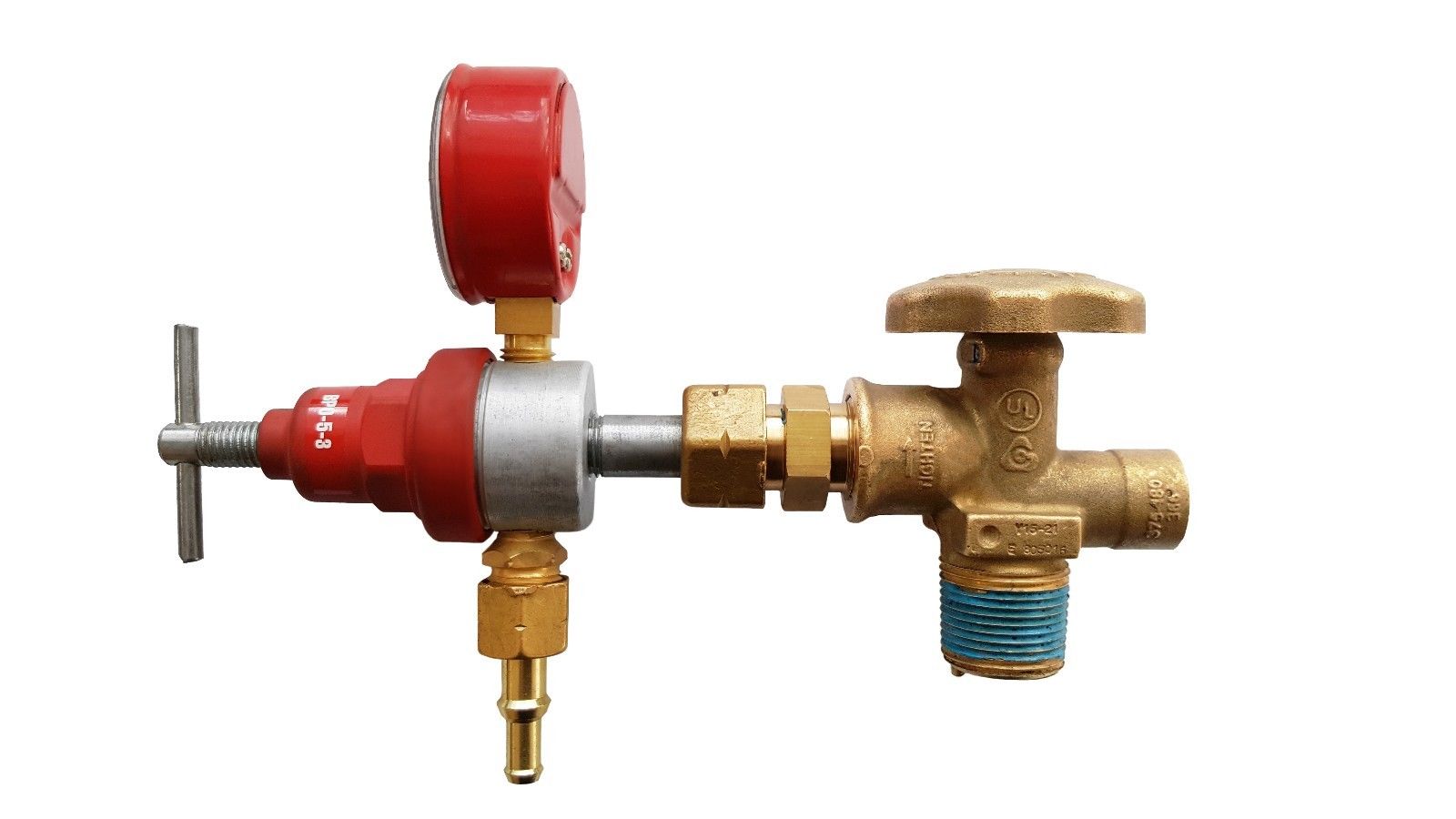

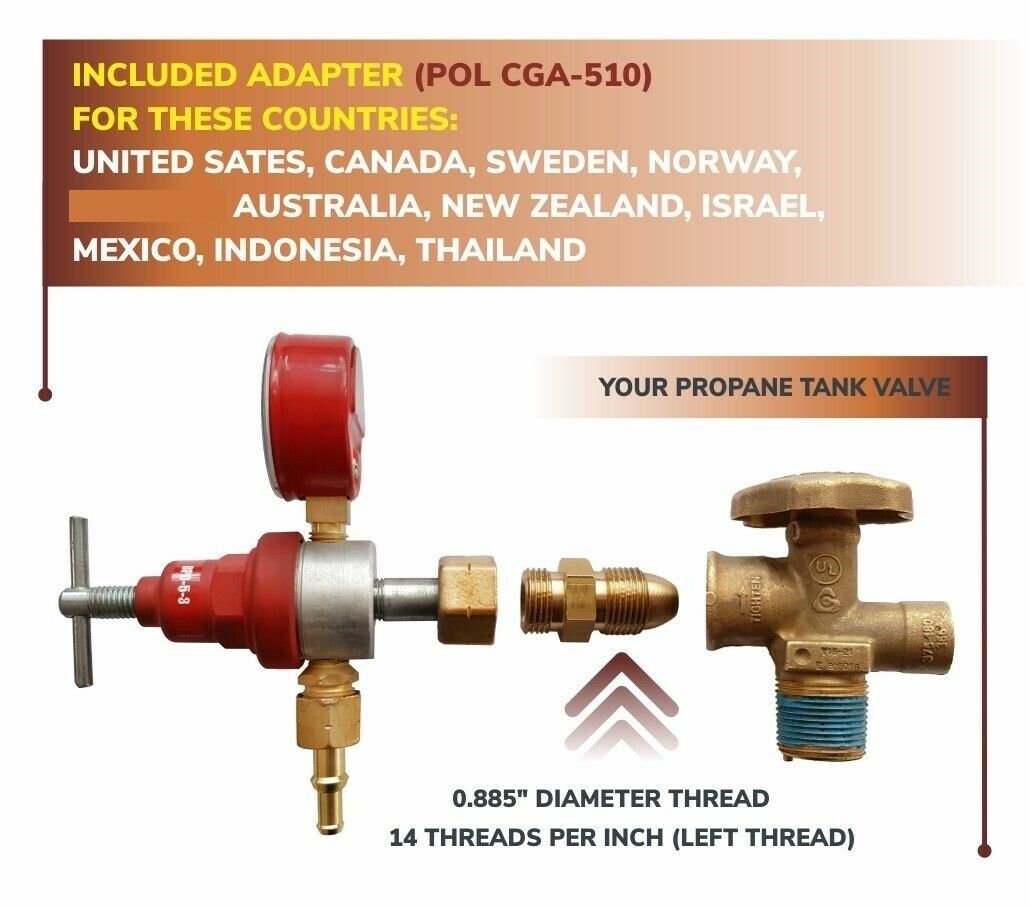

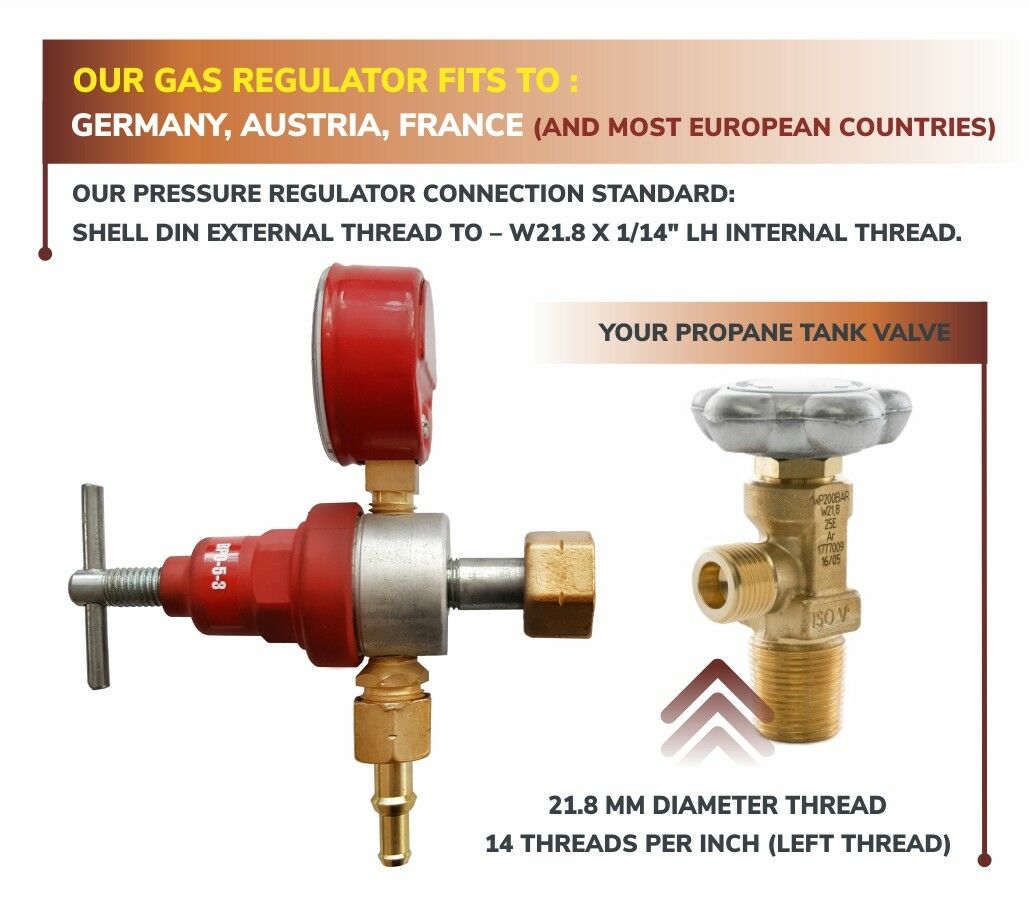

- 1 gas pressure regulator with gauge, 1 to 90 PSI (0 to 6 bar)
- 1 gas hose, 2 metres
- 2 clamps
The only thing you need to supply yourself is a gas bottle.
Specifications
- Melting capacity: 4 kg
- Maximum temperature: 1,450 °C
- Burners: 1
- Furnace: 1.5 mm steel
- Internal dimensions (W x H): 150 x 190 mm
- External dimensions (W x H): 200 x 300 mm
- Weight: 7 kg
- Output: 80,000 BTU
- Working pressure range: 1 to 25 PSI
- Adjustable air supply: yes
