Portable gas forging furnace, 3 burners with 2 valves
Hurry up, only 5 items left in stock.
Couldn't load pickup availability
Your payment details are processed securely. We do not store card details and have no access to your card information.
Description

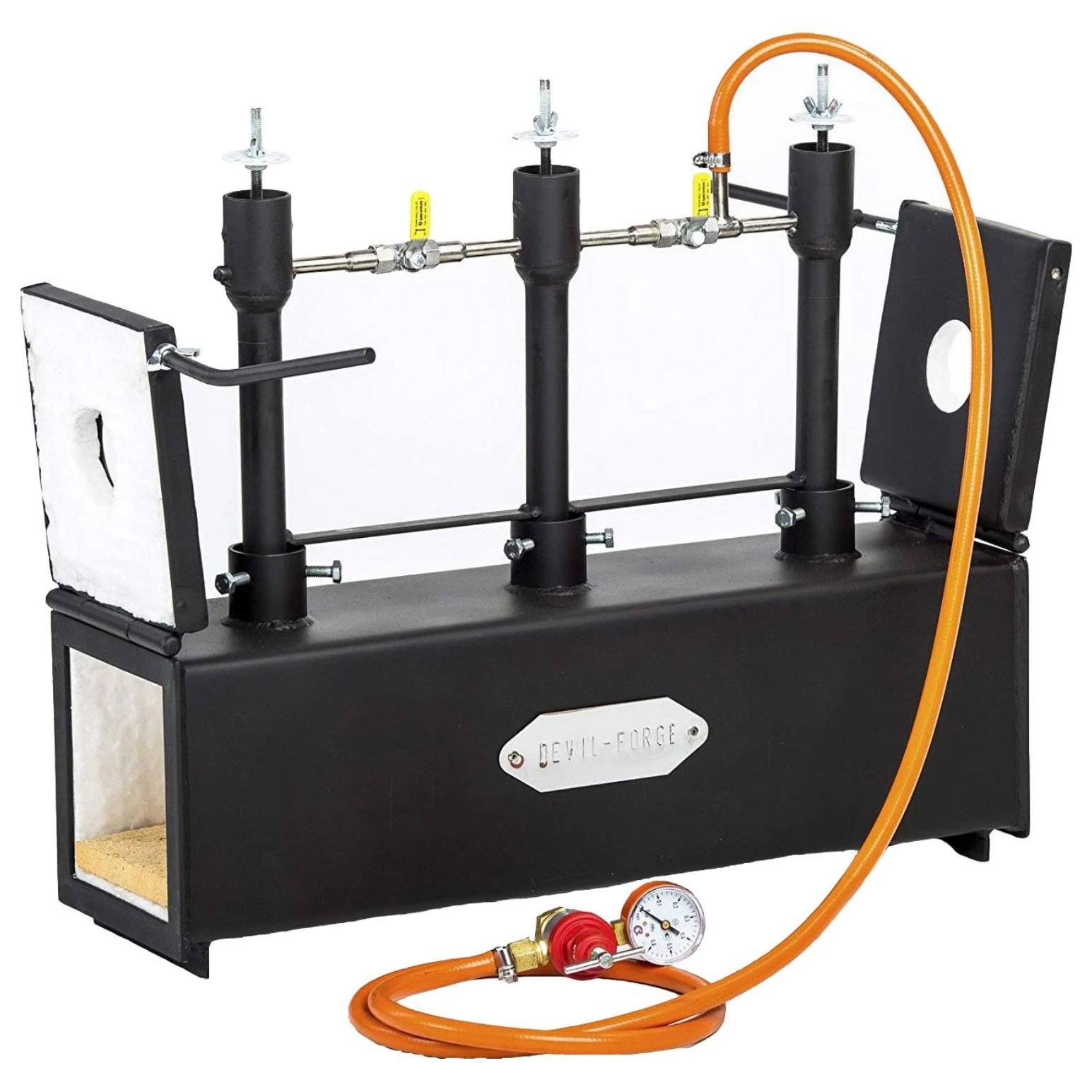

Six hundred millimetres of chamber length means you bring longer workpieces up to temperature in one go instead of in stages. Each of the three burners has a ball valve, so you can fire one, two or three at a time.
Two closable doors let you use the forge in different ways and reach a higher operating temperature. The whole unit weighs 15 kg and reaches 1,370 °C.
Burner and air supply
The burner is built from 304 stainless steel and runs between 1 and 25 PSI. It comes from the factory set to a neutral flame.
The adjustable choke lets you bring the air mixture to the right ratio for your working pressure. Without that option, you will never get the full temperature out of the forge.
Lining
One inch of ceramic coating on the inside, floor of ceramic brick.
Fuel
You can fire on butane, on propane, on a mixture of the two, or on LPG. Natural gas is not an option.
Included
- 1 forge
- 3 gas burners with ball valve and adjustable air supply

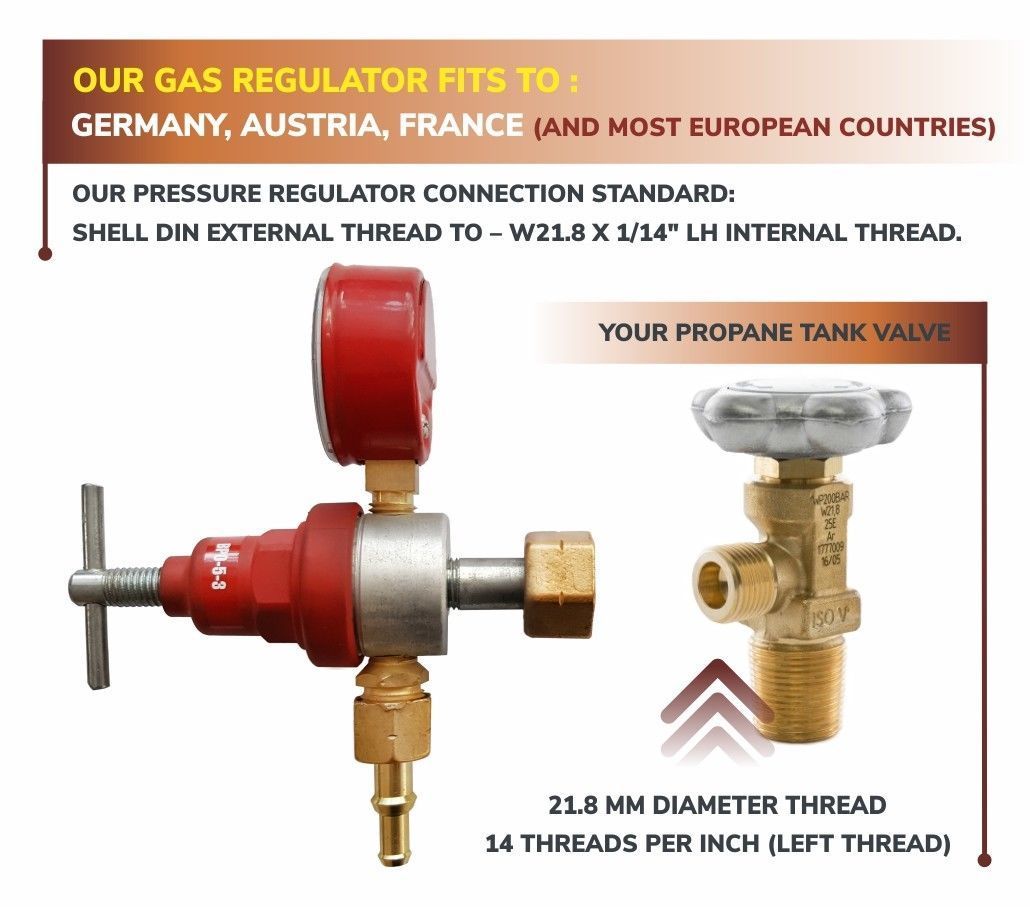

- 1 gas pressure regulator with gauge, 1 to 90 PSI (0 to 6 bar)
- 1 gas hose, 2 metres
- 2 clamps
To buy separately: a gas cylinder.
Specifications
- Burners: 3
- Forge: 1.5 mm steel
- Internal dimensions: 600 x 145 x 145 mm
- Closable doors: 2
- Weight: 15 kg
- Output: 80,000 BTU
- Working pressure range: 1 to 25 PSI
- Adjustable air supply: yes
