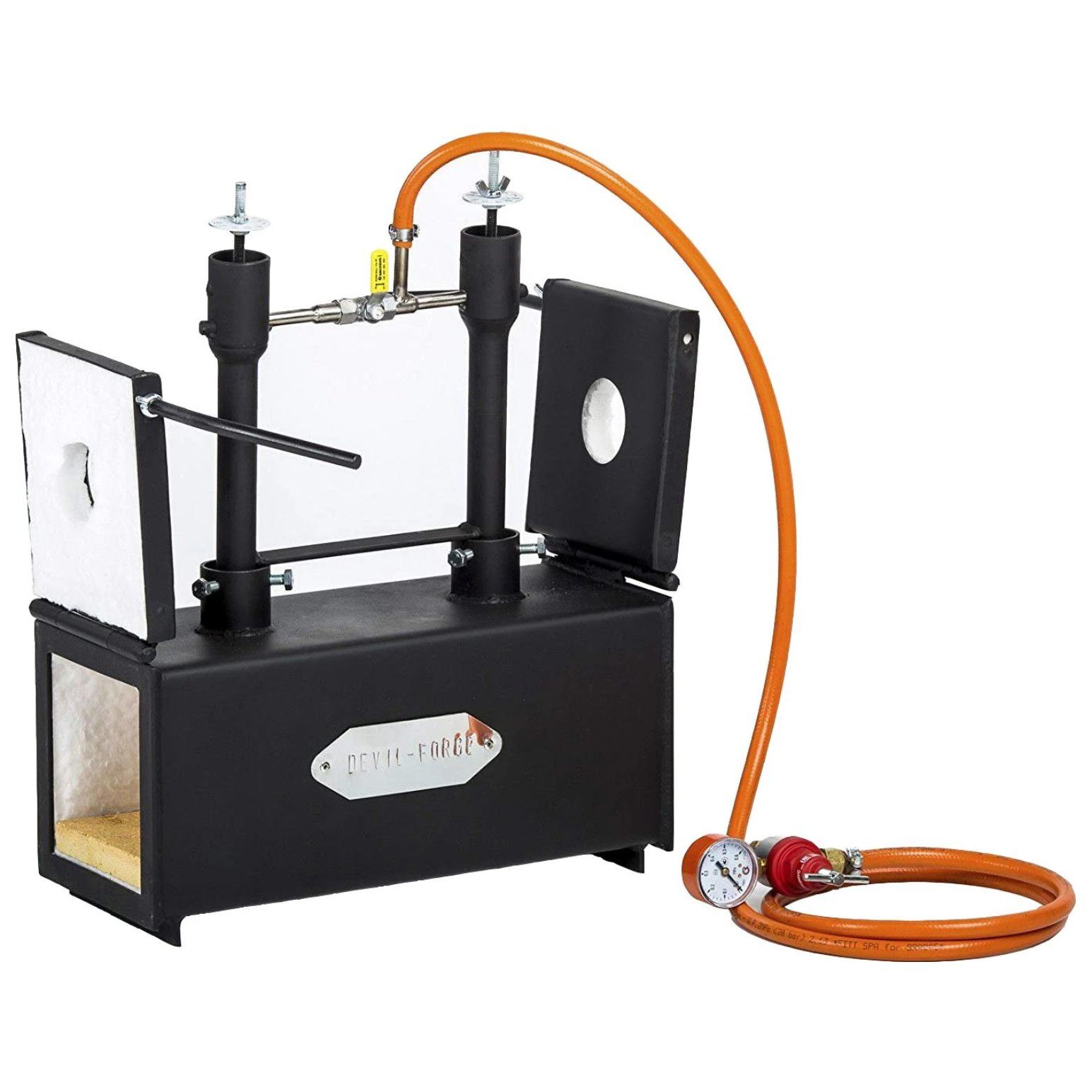

Portable gas forging furnace, 2 burners with 2 valves
Hurry up, only 4 items left in stock.
Couldn't load pickup availability
Your payment details are processed securely. We do not store card details and have no access to your card information.
Description
Two closable doors give you more ways to use the forge than a single door. Open the chamber at both ends for long workpieces, or keep it closed for a higher operating temperature.
The dual burner works with a choke and ball valve. The chamber measures 400 by 140 by 140 mm and the forge weighs 12 kg. Welding temperatures of 1,370 °C are achievable.
Burner and air supply
The burners are made of 304 stainless steel and work between 1 and 25 PSI. They arrive pre-set to a neutral flame, after which you fine-tune with the choke.
That choke determines how much air mixes in with the propane. That's what it's all about with a forge: without an adjustable air supply you won't reach top speed, because every working pressure calls for its own air-to-gas ratio.
Lining
A 1-inch ceramic coating on the inside and a floor of ceramic brick.
Fuel
The burners run on butane, propane, a butane and propane mix, and LPG. They do not work on natural gas.
If you use just one burner, close the choke on the other.
What's included
- 1 forge
- 2 gas burners with ball valve and adjustable air supply

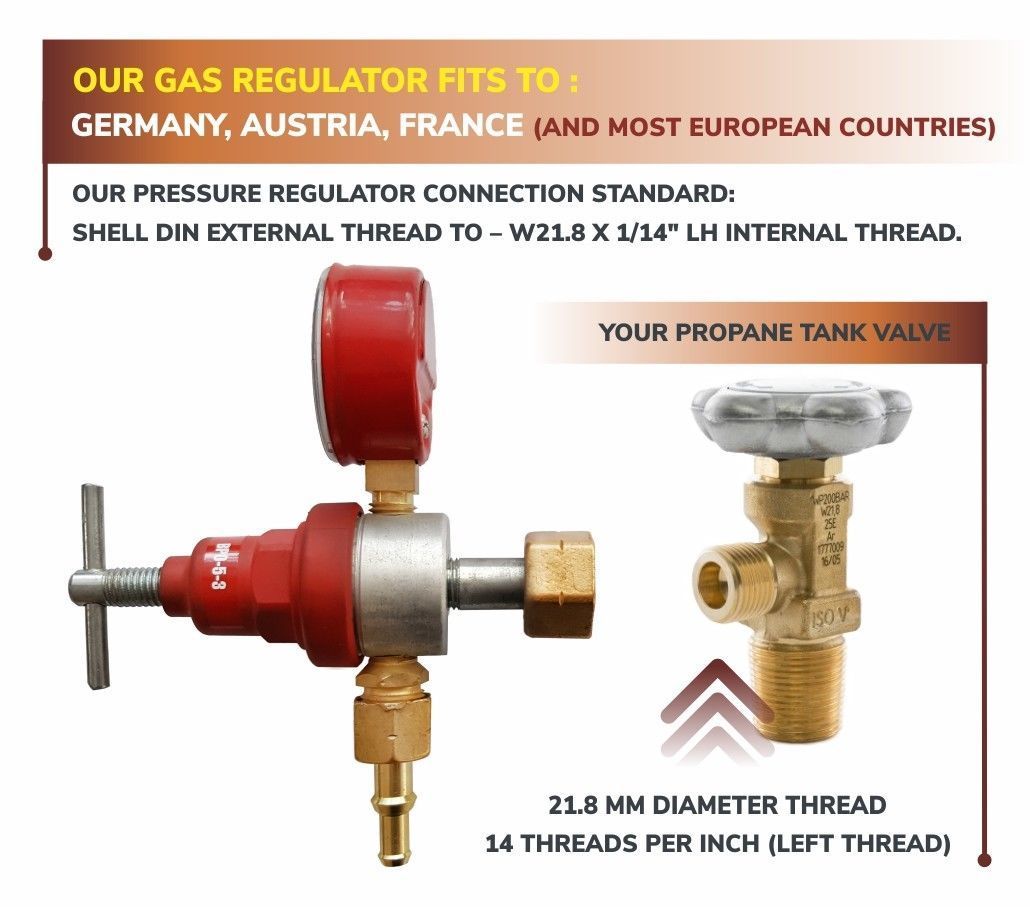

- 1 gas pressure regulator with gauge, 1 to 90 PSI (0 to 6 bar)
- 1 gas hose, 2 metres
- 2 clamps
A gas cylinder is the only thing you'll need to supply yourself.
Specifications
- Burners: 2
- Forge: 1.5 mm steel
- Internal dimensions: 400 x 140 x 140 mm
- Closable doors: 2
- Weight: 12 kg
- Output: 80,000 BTU
- Working pressure range: 1 to 25 PSI
- Adjustable air supply: yes
