Portable gas forging furnace, 2 burners with 1 valve
Out of stock
Couldn't load pickup availability
Your payment details are processed securely. We do not store card details and have no access to your card information.
Description

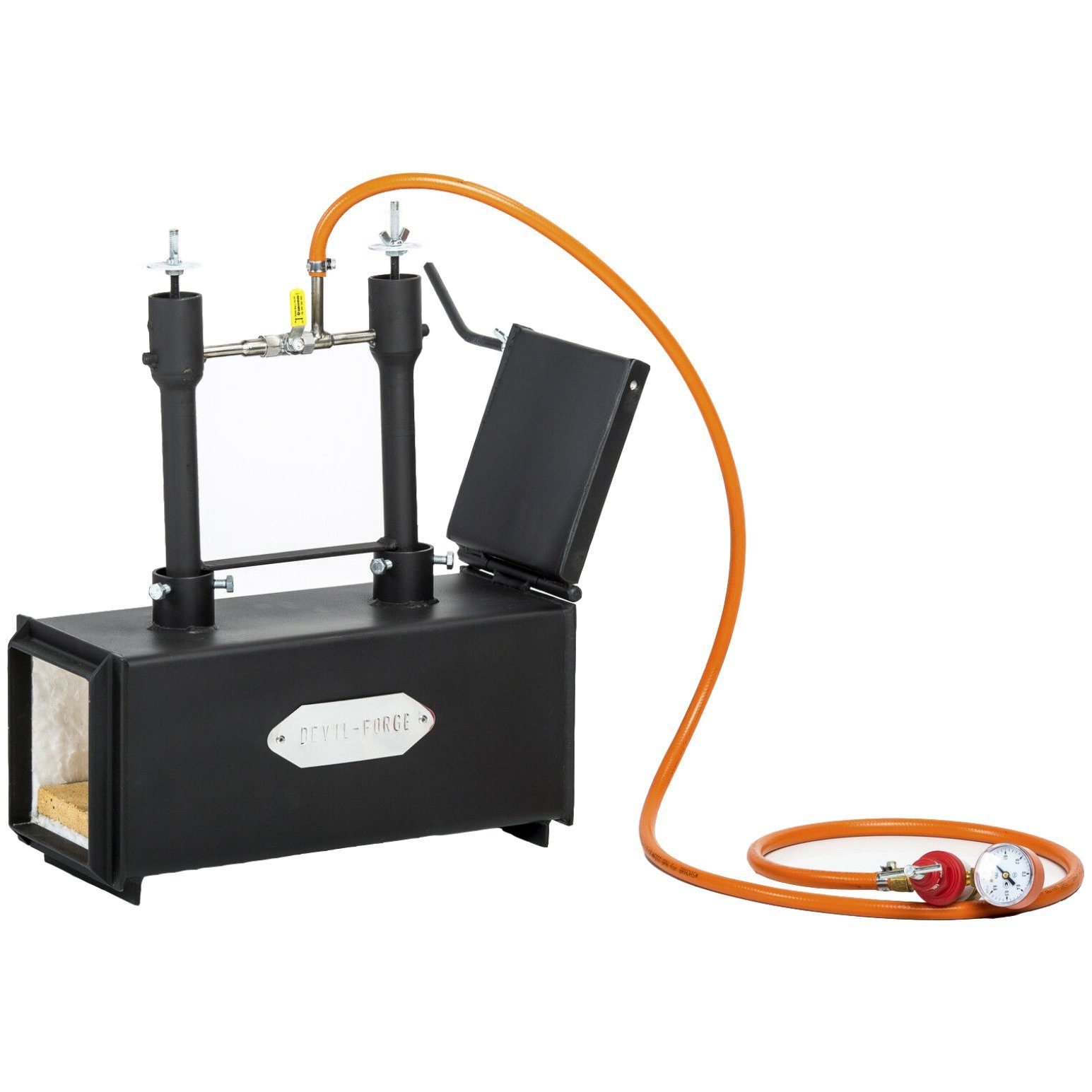

This version has one closable door, letting you use the forge in different ways and reach a higher operating temperature. The dual burner works with a choke and ball valve, so you can fire with one or two burners.
The chamber measures 400 by 140 by 140 mm and the forge weighs 12 kg. A welding temperature of 1,370 °C is achievable.
Burner and air supply
Made from 304 stainless steel, with a working pressure between 1 and 25 PSI. Set to a neutral flame from the factory, with a choke for your own adjustment.
That choke controls the air mixture, and that determines the temperature you can reach. Every working pressure calls for a different air-to-gas ratio.
Lining
The inside has a 1-inch ceramic coating, and the floor is made of ceramic brick.
Fuel
Butane, propane, a combination of the two, and LPG all work. Natural gas is not an option.
If you're working with one burner, close the choke on the burner that's switched off.
Included
- 1 forge
- 2 gas burners with ball valve and adjustable air supply

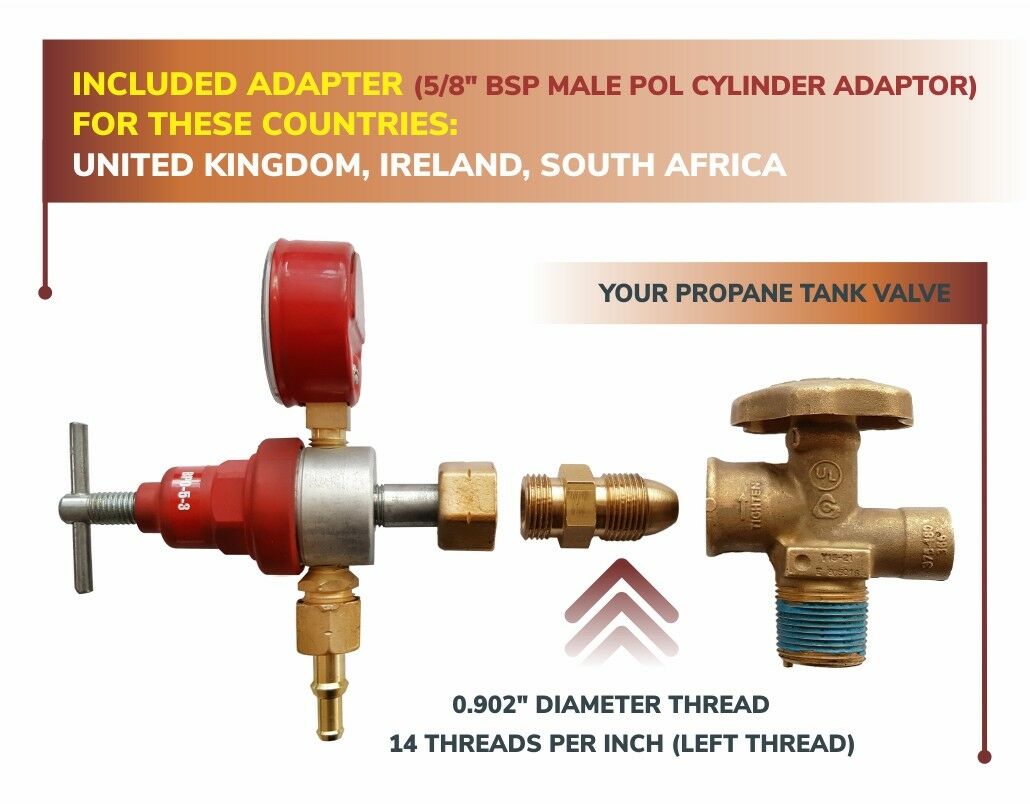

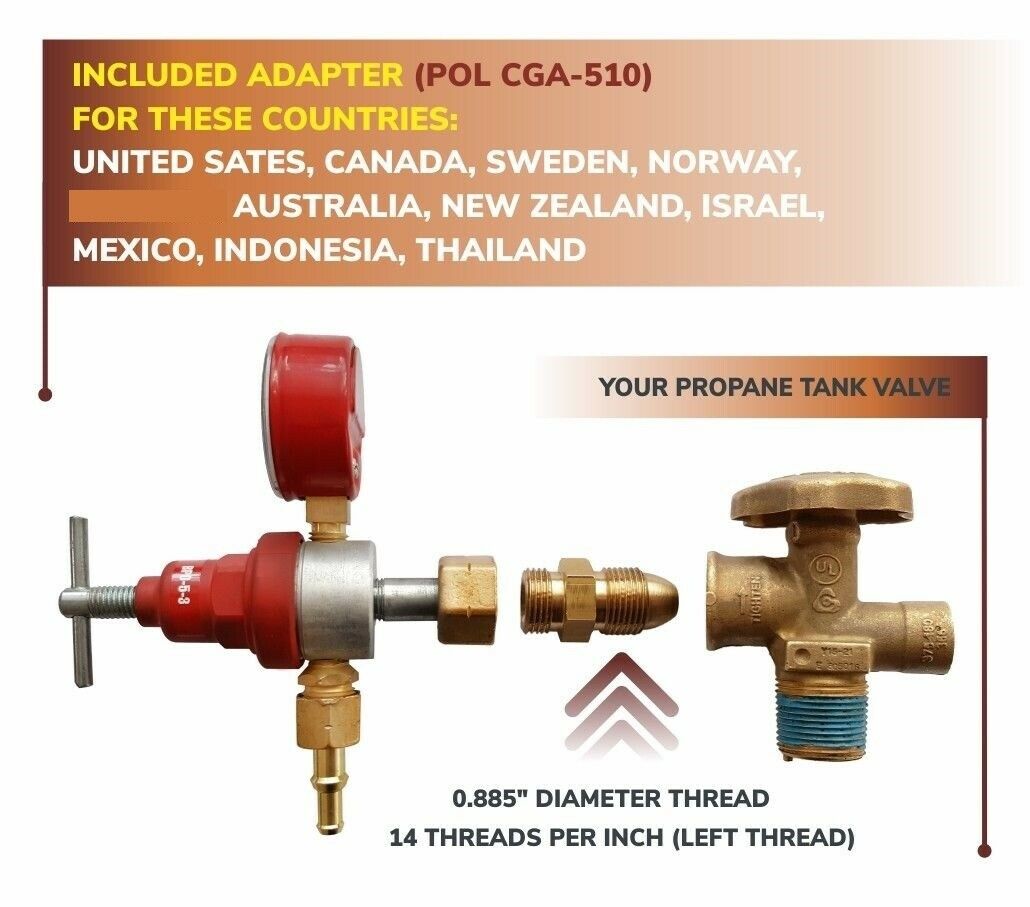

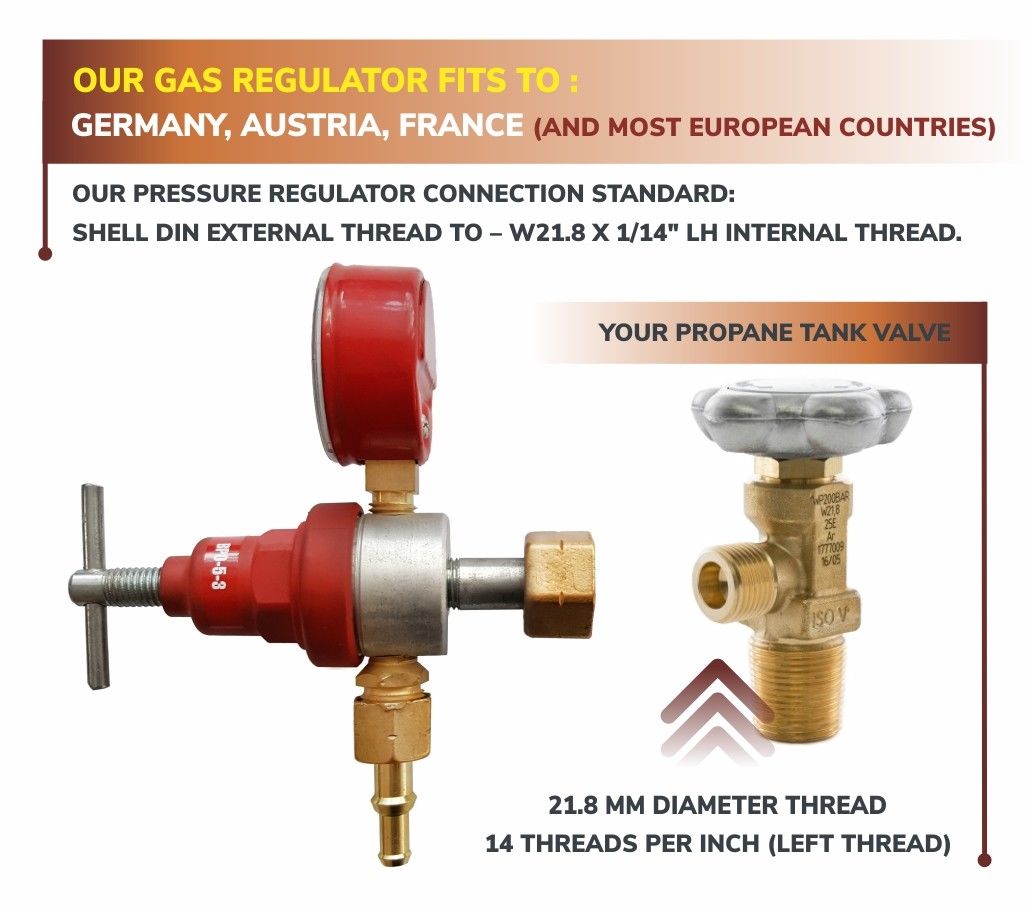

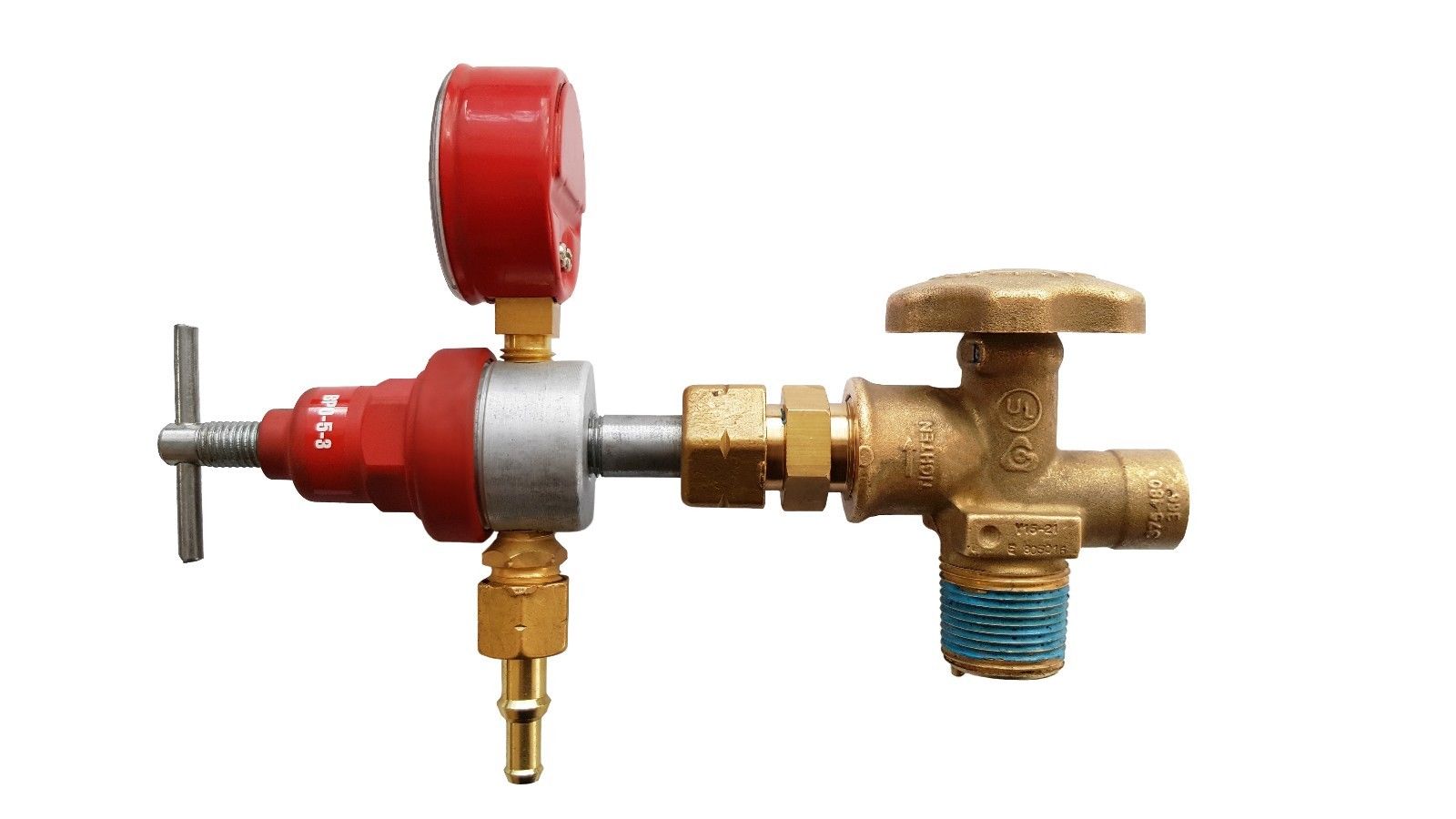

- 1 gas pressure regulator with gauge, 1 to 90 PSI (0 to 6 bar)
- 1 gas hose, 2 metres
- 2 clamps
The only thing missing is a gas cylinder.
Specifications
- Burners: 2
- Forge: 1.5 mm steel
- Internal dimensions: 400 x 140 x 140 mm
- Closable door: 1
- Weight: 12 kg
- Output: 80,000 BTU
- Working pressure range: 1 to 25 PSI
- Adjustable air supply: yes
