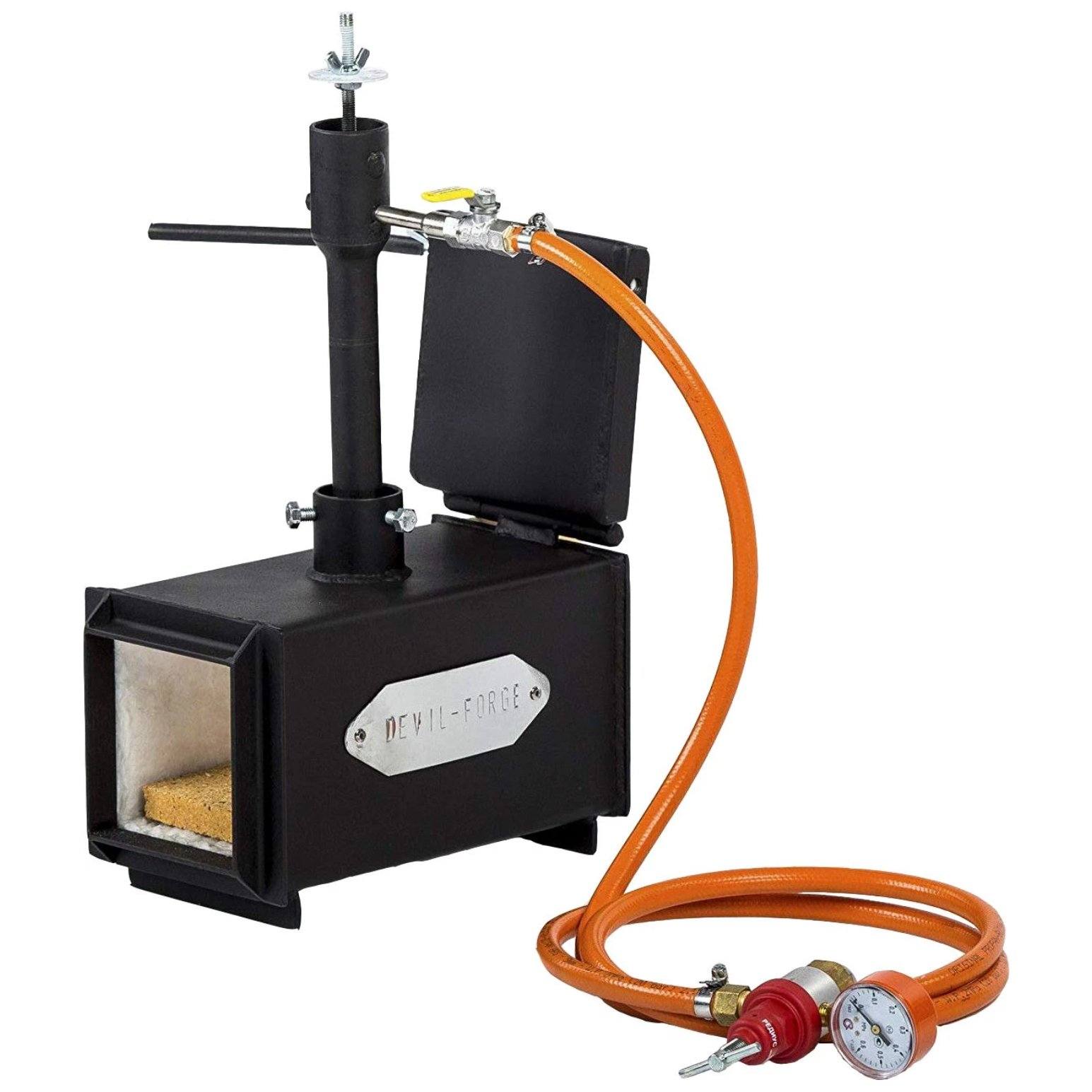

Portable gas forging furnace, 1 burner with valve
Out of stock
Couldn't load pickup availability
Your payment details are processed securely. We do not store card details and have no access to your card information.
Description
The difference from the valveless version lies in the closable damper. It keeps the heat inside the chamber, so you work at a higher operating temperature with the same gas consumption. The forge weighs 7 kg and has a chamber measuring 250 by 120 by 120 mm.
The burner has a ball valve and a choke. A welding temperature of 1,370 °C is achievable.
Burner and air supply
The burner is made of 304 stainless steel and runs between 1 and 25 PSI. It comes from the factory set to a neutral flame.
With the adjustable choke, you bring the air mixture to the right ratio for your working pressure. Without that option, you'll never get the full temperature out of the forge.
Lining
A 1-inch ceramic coating on the inside, with a floor of ceramic brick.
Fuel
You can run it on butane, propane, a mixture of the two, or LPG. Natural gas is not an option.
Included
- 1 forge
- 1 gas burner with ball valve and adjustable air supply

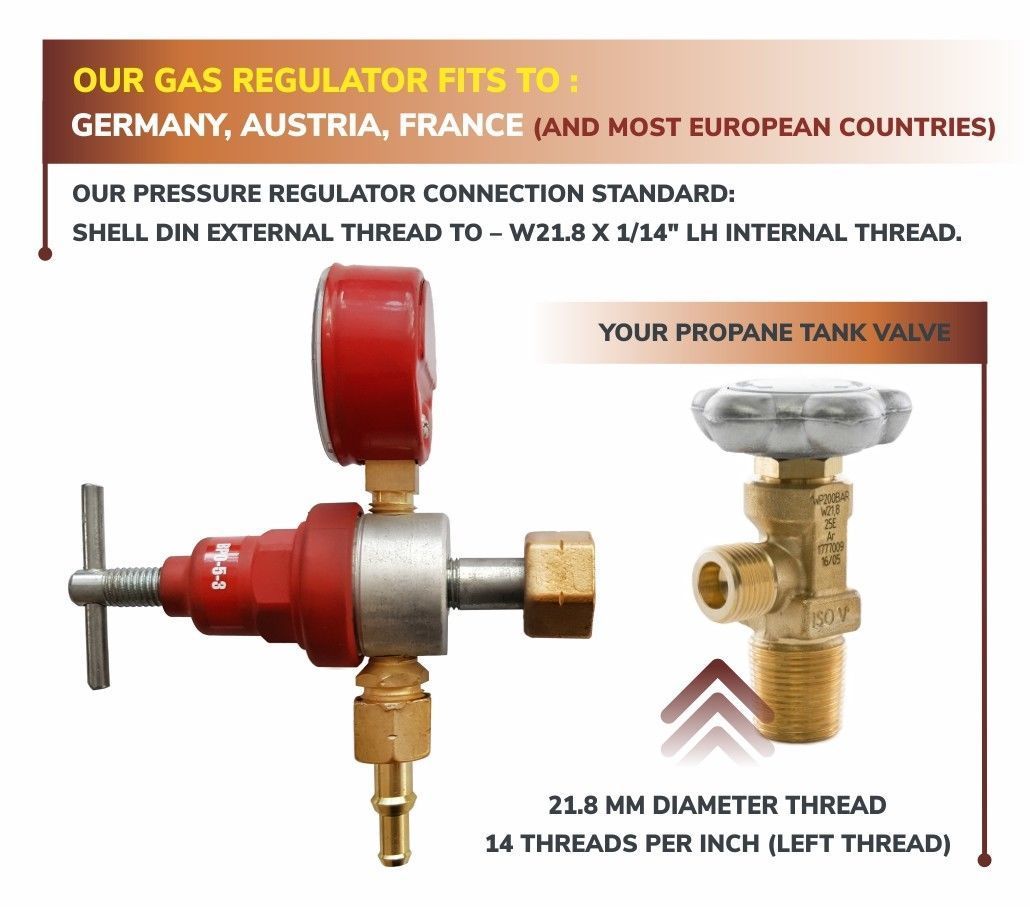

- 1 gas pressure regulator with gauge, 1 to 90 PSI (0 to 6 bar)
- 1 gas hose, 2 metres
- 2 clamps
To buy separately: a gas cylinder.
Specifications
- Burners: 1
- Forge: 1.5 mm steel
- Internal dimensions: 250 x 120 x 120 mm
- Closable damper: 1
- Weight: 7 kg
- Output: 80,000 BTU
- Working pressure range: 1 to 25 PSI
- Adjustable air supply: yes
