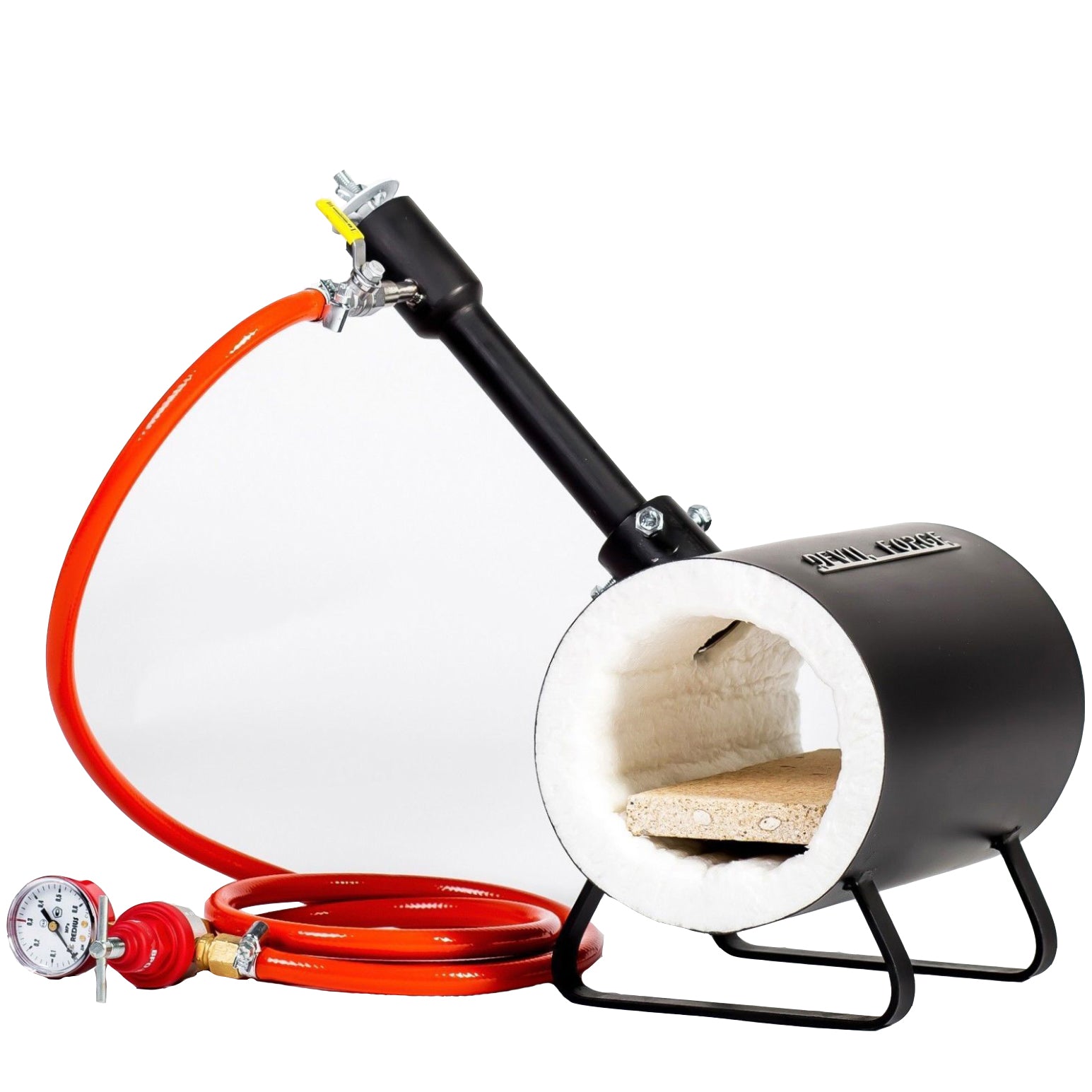

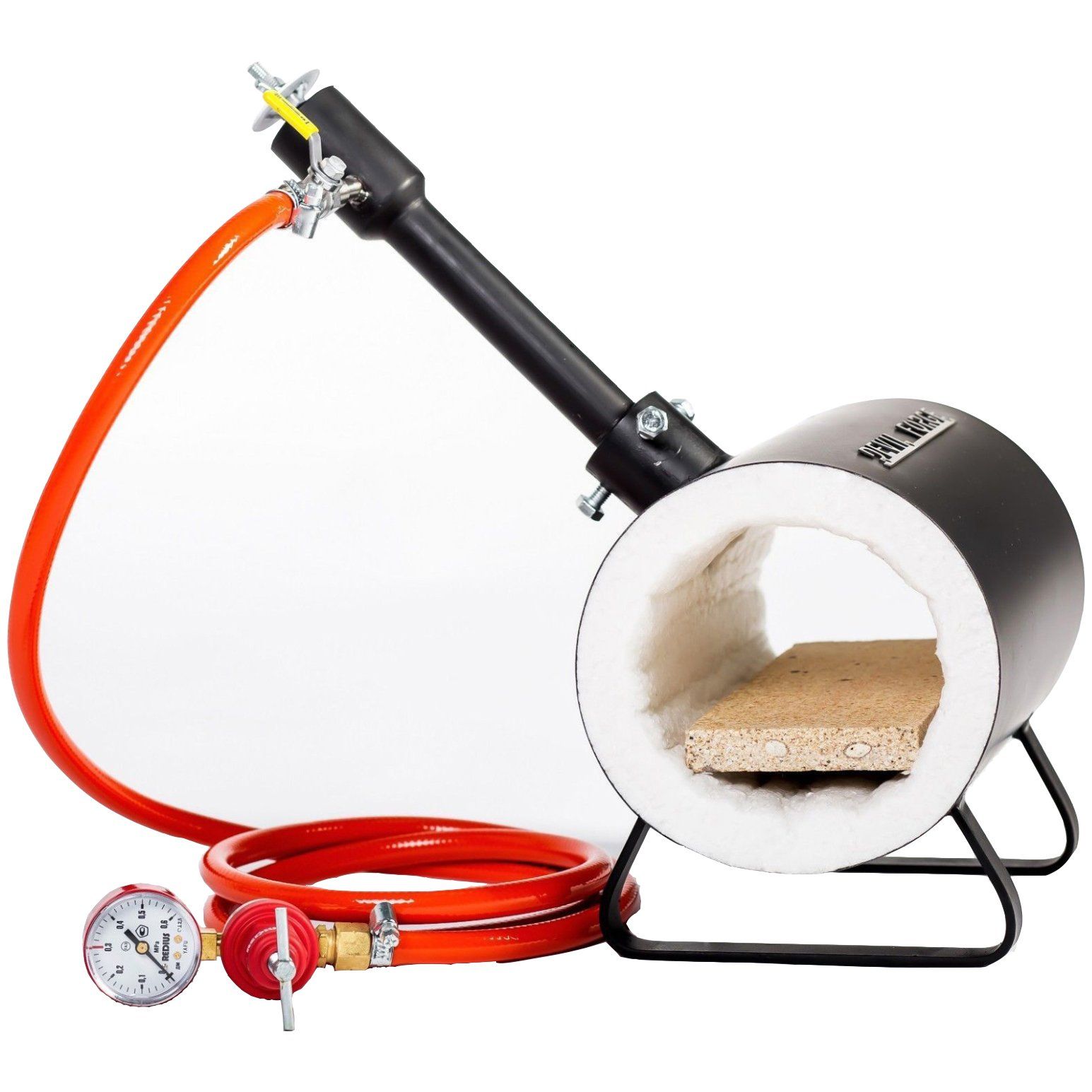

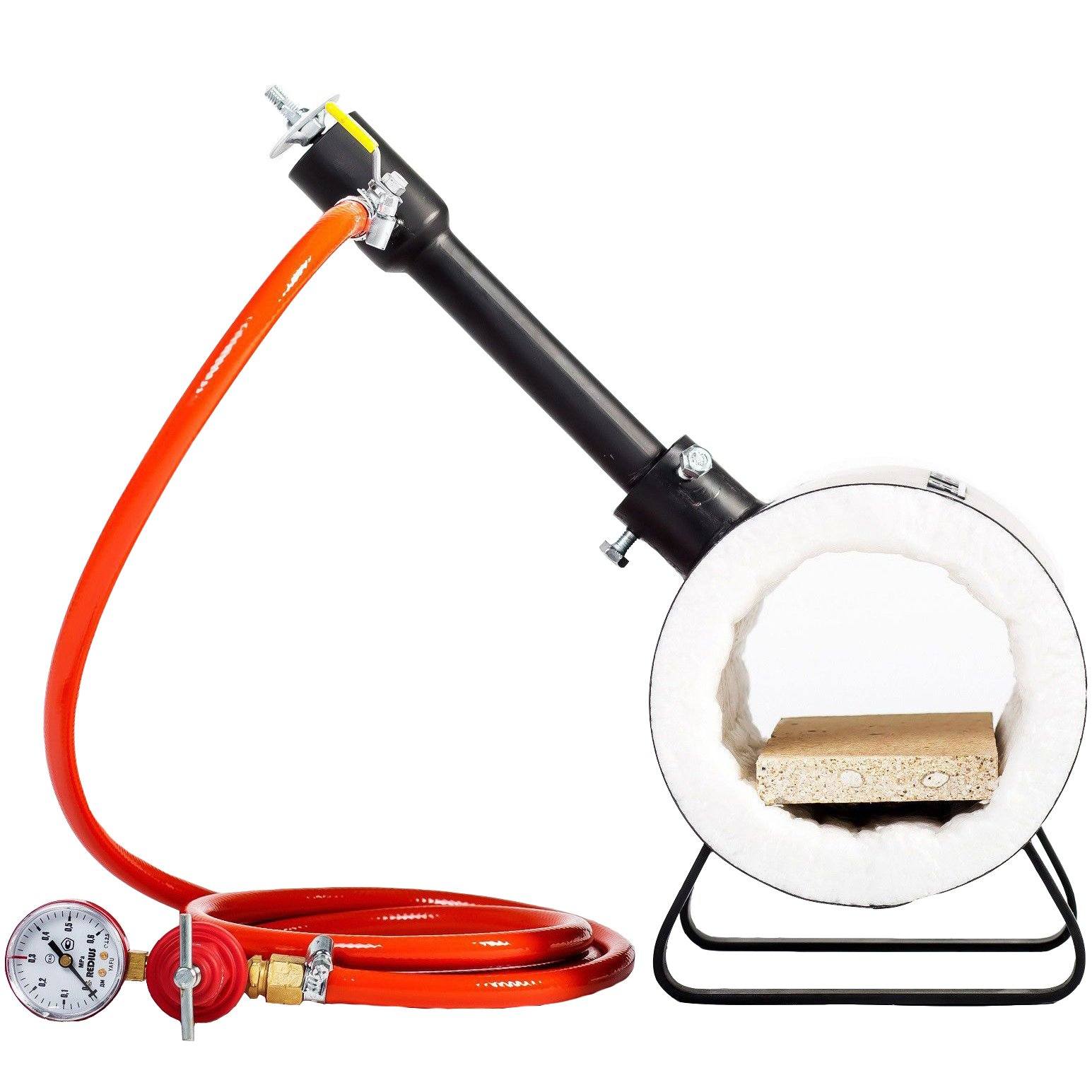

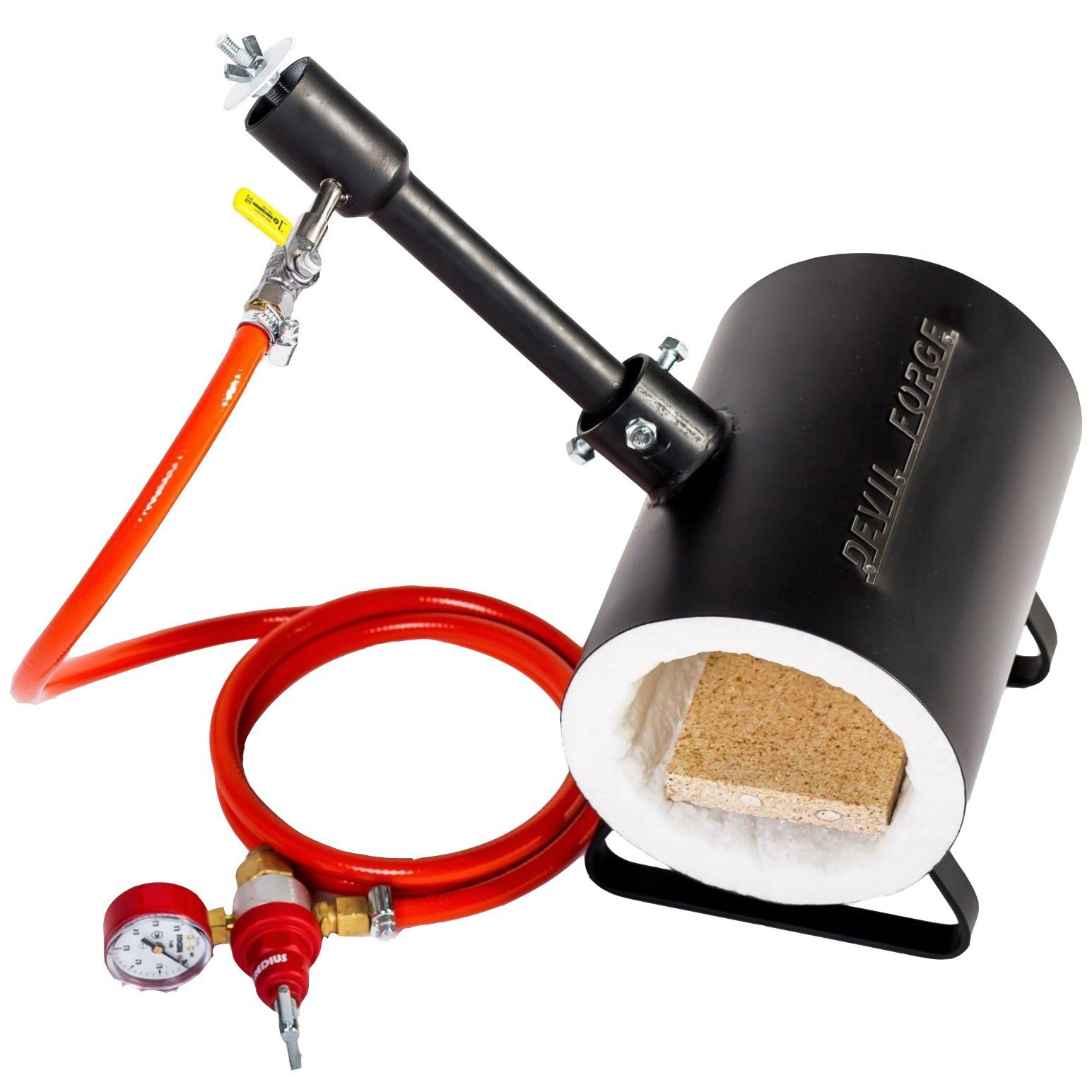

Portable gas forging furnace, 1 burner
Hurry up, only 4 items left in stock.
Couldn't load pickup availability
Your payment details are processed securely. We do not store card details and have no access to your card information.
Description

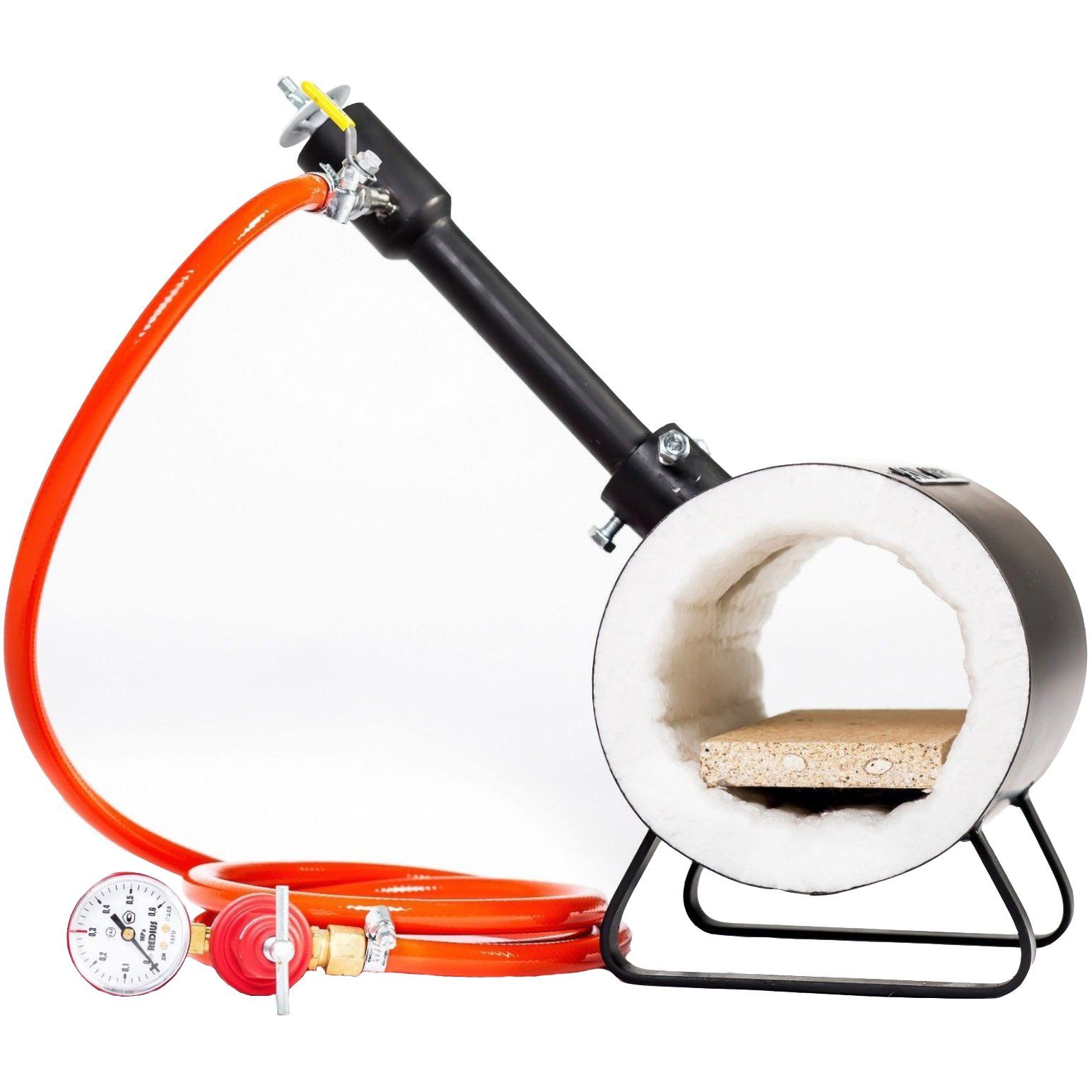

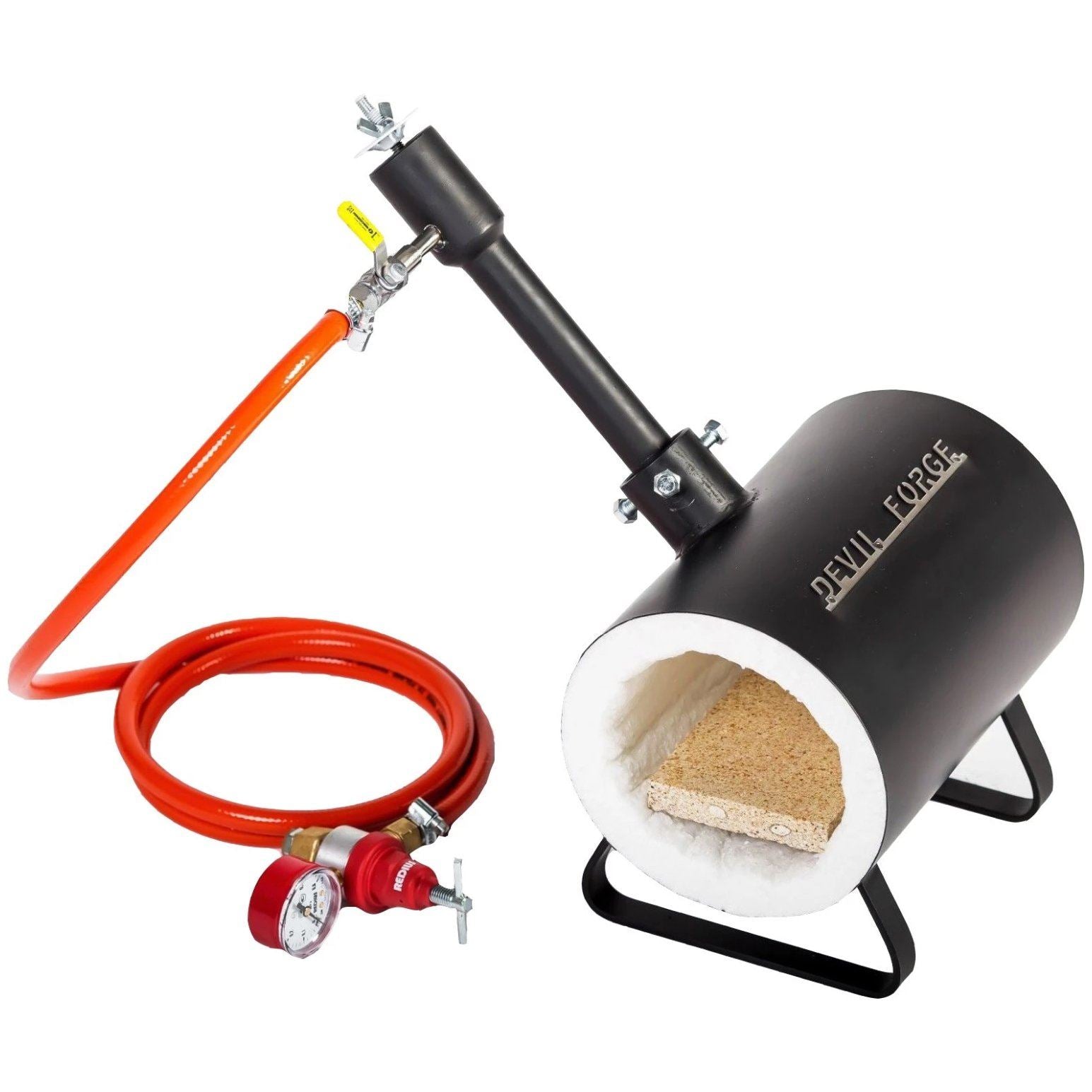

Five kilos, one burner, and a chamber measuring 250 by 140 by 140 mm. This is the lightest forge in the range, making it the one you take outdoors or along to a demonstration. It reaches a welding temperature of 1,370 °C without trouble.
Intended for blacksmiths, farriers, and knifemakers.
Burner and air supply
The burners are made of 304 stainless steel and operate between 1 and 25 PSI. They arrive pre-set to a neutral flame, after which you fine-tune using the choke.
That choke determines how much air mixes in with the propane. This is what a forge is all about: without an adjustable air supply you won't reach top speed, because every working pressure calls for its own air-to-gas ratio.
Lining
The inside features a 1-inch ceramic coating. The floor is made of ceramic brick, which takes on the heaviest load.
Fuel
The burners run on butane, propane, a butane-propane mix, and LPG. They do not run on natural gas.

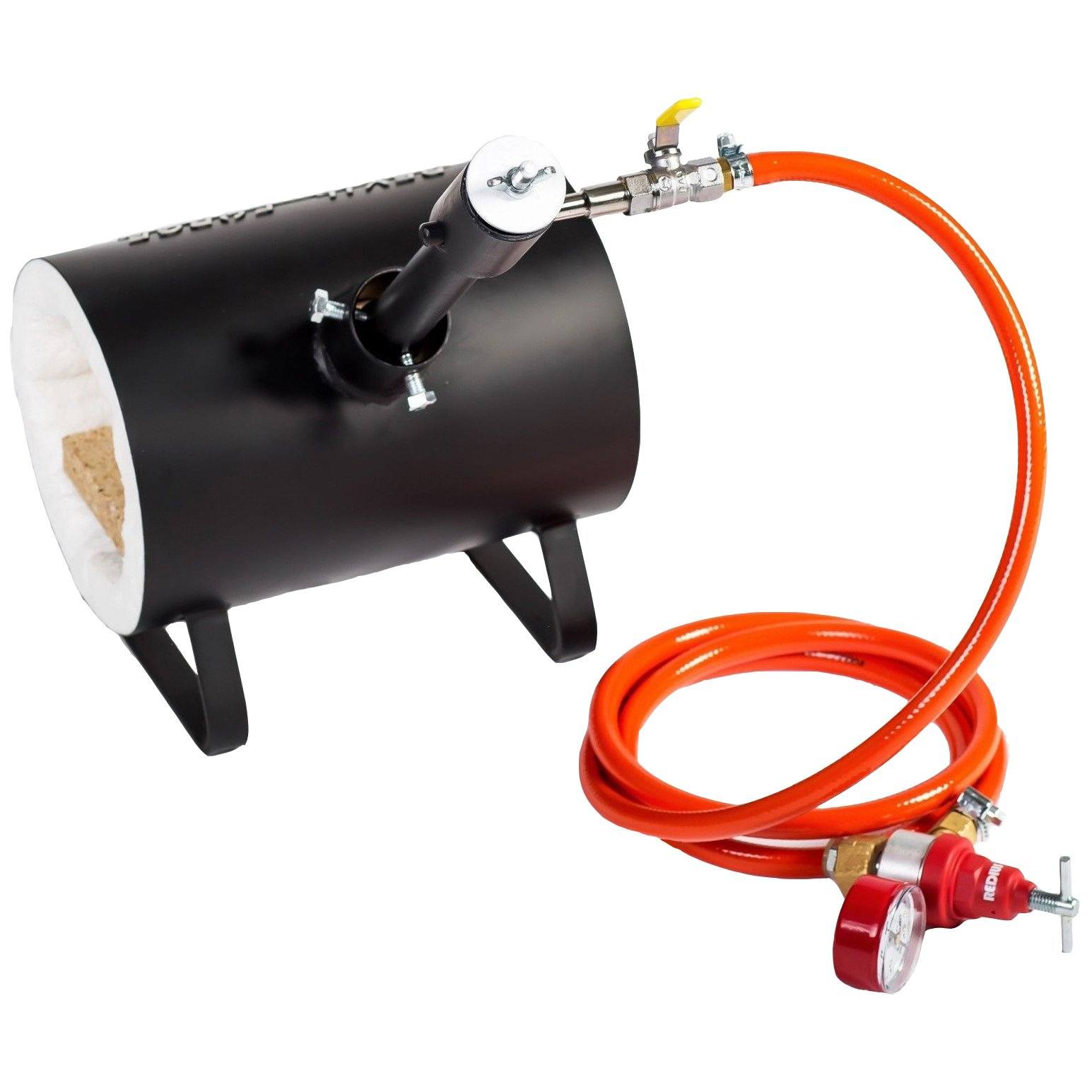

Included
- 1 forge
- 1 gas burner with ball valve and adjustable air supply

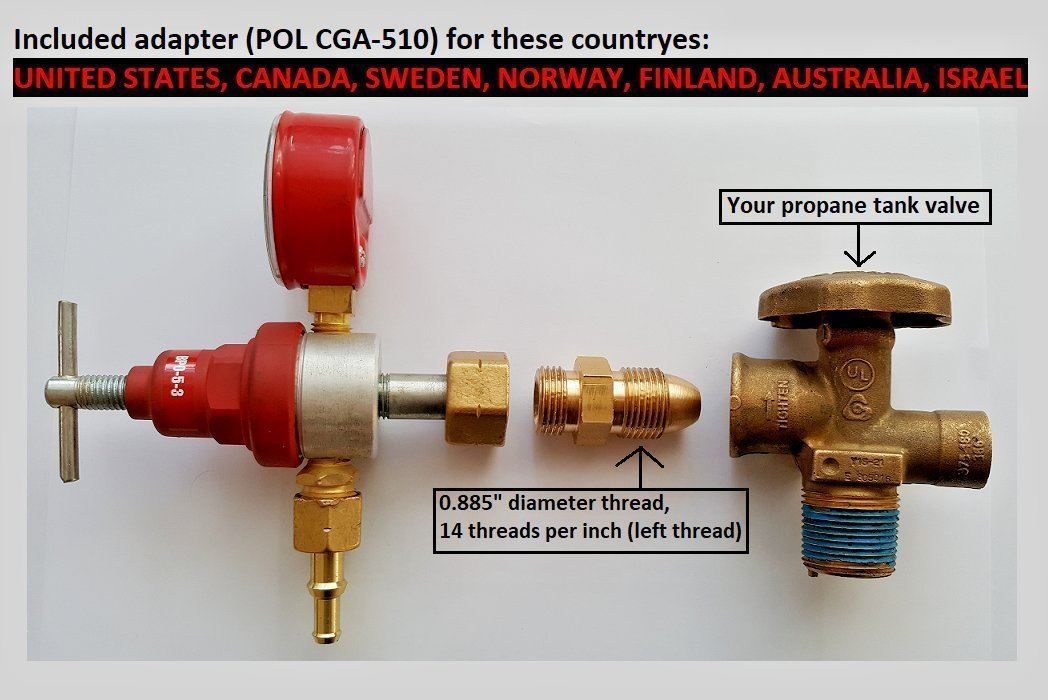

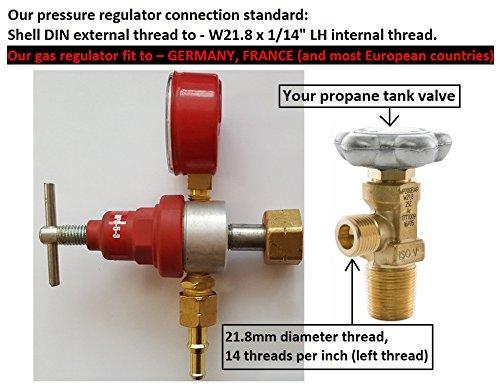

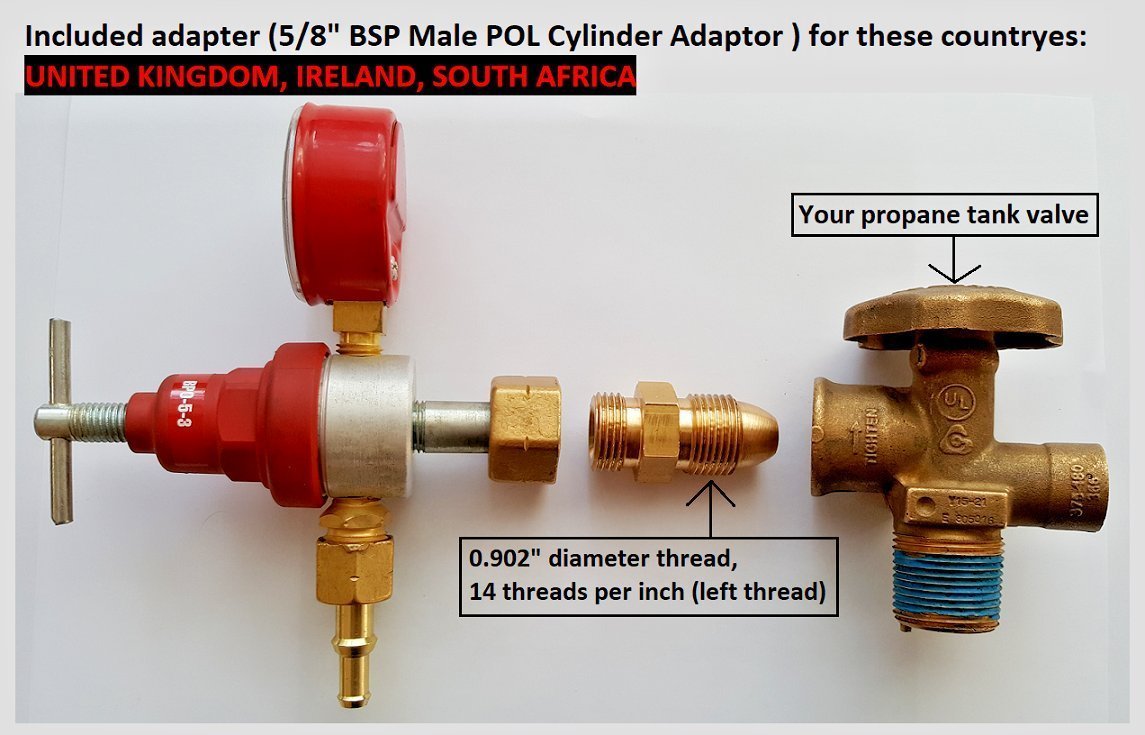

- 1 gas pressure regulator with gauge, 1 to 90 PSI (0 to 6 bar)
- 1 gas hose, 2 metres
- 2 clamps
A gas cylinder is the only thing you'll need to supply yourself.
Specifications
- Burners: 1
- Forge body: 0.8 mm steel
- Internal dimensions: 250 x 140 x 140 mm
- Weight: 5 kg

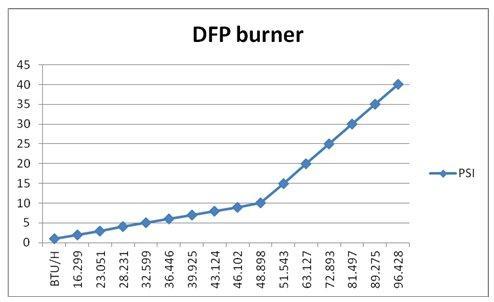

- Output: 80,000 BTU
- Working pressure range: 1 to 25 PSI
- Adjustable air supply: yes
- Closable door: no
